internal constructor new Cesium.Label(options, labelCollection)

Create labels by calling LabelCollection#add. Do not call the constructor directly.
Name Type Description
options Label.ConstructorOptions 描述初始化选项的对象
labelCollection LabelCollection 标签收集实例
Throws:
  • DeveloperError : translucencyByDistance.far must be greater than translucencyByDistance.near
  • DeveloperError : pixelOffsetScaleByDistance.far must be greater than pixelOffsetScaleByDistance.near
  • DeveloperError : distanceDisplayCondition.far must be greater than distanceDisplayCondition.near
Demo:
See:

Members

static Cesium.Label.enableRightToLeftDetection : boolean

确定是否运行算法,将标签文本与右到左语言匹配
Default Value: false
Examples:
// Example 1.
// Set a label's rightToLeft before init
Cesium.Label.enableRightToLeftDetection = true;
const myLabelEntity = viewer.entities.add({
  label: {
    id: 'my label',
    text: 'זה טקסט בעברית \n ועכשיו יורדים שורה',
  }
});
// Example 2.
const myLabelEntity = viewer.entities.add({
  label: {
    id: 'my label',
    text: 'English text'
  }
});
// Set a label's rightToLeft after init
Cesium.Label.enableRightToLeftDetection = true;
myLabelEntity.text = 'טקסט חדש';

backgroundColor : Color

获取或设置此标签的背景颜色 .
Default Value: new Color(0.165, 0.165, 0.165, 0.8)

backgroundPadding : Cartesian2

Gets or sets the background padding, in pixels, of this label. The x value 控制水平的粘贴,而 NT 0 Y NT 1 值控制垂直粘贴.
Default Value: new Cartesian2(7, 5)

disableDepthTestDistance : number|undefined

获取或设定与相机的距离,超出该距离后,深度测试即被禁用——例如,防止对地形进行剪切. 当设置为 NT 0 未定义 NT 1 或 0, the depth test is always applied. When set to Number.POSITIVE_INFINITY, the depth test is never applied.
Default Value: undefined

distanceDisplayCondition : DistanceDisplayCondition

获取或设定条件, 指定此标签将显示在相机的距离 .
Default Value: undefined

eyeOffset : Cartesian3

获取并设定眼坐标中这个标签应用的3D笛卡尔偏移. 眼睛坐标是左手的 坐标系统,其中 NT 0 x NT 1 指向观众的右侧, NT 2 y NT 3 指向上方,以及 z points into the screen. Eye coordinates use the same scale as world and model coordinates, 这是典型的米.

双眼偏移通常用于在同一位置排列多个标签或对象, e.g 在相应的3D模型上方安排标签.

下方的标签位于地球中心 但眼球的偏移使它永远 无论观众或地球的定位如何 都出现在地球顶部.

l.eyeOffset = new Cartesian3(0.0, 8000000.0, 0.0);

Default Value: Cartesian3.ZERO

fillColor : Color

获取或设置此标签的填充颜色 .
Default Value: Color.WHITE
See:

font : string

Gets or sets the font used to draw this label. Fonts are specified using the same syntax as the CSS 'font' property.
Default Value: '30px sans-serif'
See:

heightReference : HeightReference

获取或设定此公告牌的高度参考.
Default Value: HeightReference.NONE

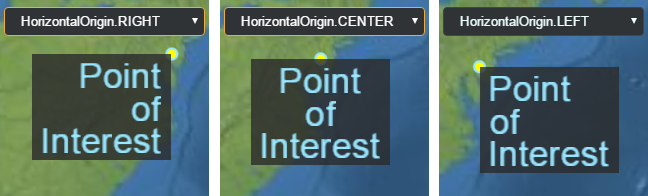

horizontalOrigin : HorizontalOrigin

获取或设置此标签的横向来源, 以决定标签是否绘制 在它的锚位置的左、中或右侧.


Default Value: HorizontalOrigin.LEFT
Example:
// Use a top, right origin
l.horizontalOrigin = Cesium.HorizontalOrigin.RIGHT;
l.verticalOrigin = Cesium.VerticalOrigin.TOP;

id : *

选择标签时获取或设置用户定义的值.

outlineColor : Color

获取或设置此标签的大纲颜色 .
Default Value: Color.BLACK
See:

outlineWidth : number

获取或设置此标签的大纲宽度 .
Default Value: 1.0
See:

pixelOffset : Cartesian2

从此标签的来源获取或设置屏幕空间中的像素偏移 。 这是常用的 用于在同一位置对齐多个标签和公告牌, e.g .,一个图像和文本. 那个 屏幕空间源是画布的顶部,左角; NT 0 x NT 1 从 左到右,和 NT 0 Y NT 1 从上到下增加.

default
 l.pixeloffset = new Cartesian2(25, 75);
标签的产地以黄点表示.
Default Value: Cartesian2.ZERO

pixelOffsetScaleByDistance : NearFarScalar

根据标签与相机的距离,获取或设定一个标签的大小属性. A label's pixel offset will be scaled between the NearFarScalar#nearValue and NearFarScalar#farValue while the camera distance falls within the lower and upper bounds of the specified NearFarScalar#near and NearFarScalar#far. 在这些范围之外,标签的像素抵消缩放仍被夹在最接近的边框上。 如果未定义, 将禁用像素Offset ScaleByDistance .
Examples:
// Example 1.
// Set a label's pixel offset scale to 0.0 when the
// camera is 1500 meters from the label and scale pixel offset to 10.0 pixels
// in the y direction the camera distance approaches 8.0e6 meters.
text.pixelOffset = new Cesium.Cartesian2(0.0, 1.0);
text.pixelOffsetScaleByDistance = new Cesium.NearFarScalar(1.5e2, 0.0, 8.0e6, 10.0);
// Example 2.
// disable pixel offset by distance
text.pixelOffsetScaleByDistance = undefined;

position : Cartesian3

获取或设置此标签的笛卡尔位置.

scale : number

获取或设置与标签大小乘以像素的统一比例尺. 比例尺为 NT 0 1.0 NT 1 不改变标签大小;比例尺大于 +NT+0 1.0 NT+1 扩大标签;正比值小于 NT+2 1.0 NT+3 缩写 the label.

应用大尺度值可能会像素化标签. 为了在不像素的情况下使文本变大, use a larger font size when calling Label#font instead.


从左到右在以上图像中,比例尺为 NT 0 0.5 NT 1 , NT 2 1.0 NT Q 3 ,....., 和 2.0 .
Default Value: 1.0

scaleByDistance : NearFarScalar

根据标签与相机的距离,获取或设定一个标签的近和远的缩放属性. A label's scale will interpolate between the NearFarScalar#nearValue and NearFarScalar#farValue while the camera distance falls within the lower and upper bounds of the specified NearFarScalar#near and NearFarScalar#far. 在这些区域之外,标签的尺寸仍被限制在最接近的界限内。 如果未定义, 缩放ByDistance 将被禁用.
Examples:
// Example 1.
// Set a label's scaleByDistance to scale by 1.5 when the
// camera is 1500 meters from the label and disappear as
// the camera distance approaches 8.0e6 meters.
label.scaleByDistance = new Cesium.NearFarScalar(1.5e2, 1.5, 8.0e6, 0.0);
// Example 2.
// disable scaling by distance
label.scaleByDistance = undefined;

show : boolean

确定是否显示此标签。 用于隐藏或显示标签, 相反 将其删除并重新添加到收藏中.
Default Value: true

showBackground : boolean

确定是否显示此标签后面的背景 .
Default Value: false

style : LabelStyle

获取或设置此标签的样式 .
Default Value: LabelStyle.FILL

text : string

获取或设置此标签的文本 .

totalScale : number

获得标签的总比例,即标签的比例乘以计算出来的相对大小 的字体.
Default Value: 1.0

translucencyByDistance : NearFarScalar

根据标签与相机的距离,获取或设定一个标签的近和远透明属性. 标签的透明度会在 {NT}\\\ 和\ \ \ \ \ \ \ \ \ \ \ \ 和\ \ \ \ \ \ \ \ \ \ \ \ \ \ 和\ \ \ \ \ \ \ \ \ 和 NearFarScalar#farValue while the camera distance falls within the lower and upper bounds of the specified NearFarScalar#near and NearFarScalar#far. 在这些范围以外,标签的透明度仍然被限制在最接近的界限上。 如果未定义, 半透明ByDistance将被禁用 .
Examples:
// Example 1.
// Set a label's translucencyByDistance to 1.0 when the
// camera is 1500 meters from the label and disappear as
// the camera distance approaches 8.0e6 meters.
text.translucencyByDistance = new Cesium.NearFarScalar(1.5e2, 1.0, 8.0e6, 0.0);
// Example 2.
// disable translucency by distance
text.translucencyByDistance = undefined;

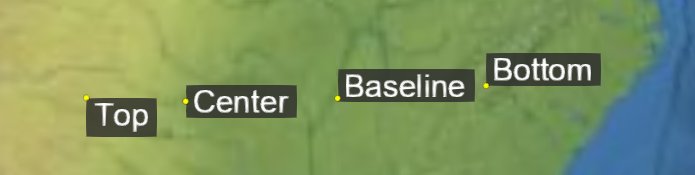

verticalOrigin : VerticalOrigin

获取或设置此标签的垂直来源, 确定标签是否为 至以上,以下,或在其锚位置中心.


Default Value: VerticalOrigin.BASELINE
Example:
// Use a top, right origin
l.horizontalOrigin = Cesium.HorizontalOrigin.RIGHT;
l.verticalOrigin = Cesium.VerticalOrigin.TOP;

Methods

computeScreenSpacePosition(scene, result) → Cartesian2

计算标签原产地的屏幕-空格位置,同时考虑到视线和像素偏移. 屏幕空间源是画布的顶端,左角; NT 0 x NT 1 从 左到右,和 NT 0 Y NT 1 从上到下增加.
Name Type Description
scene Scene 现场的标签.
result Cartesian2 optional 存储结果的对象 .
Returns:
标签的屏幕- 空间位置 .
Example:
console.log(l.computeScreenSpacePosition(scene).toString());
See:

equals(other) → boolean

确定此标签是否等于另一个标签。 如果标签的所有属性都相等 平等无边. 不同收藏中的标签可以平等.
Name Type Description
other Label optional 用来比较平等的标签 .
Returns:
如果标签是相等的,则使用#NT+0 real NT+1 ;否则, NT+2 false NT+3 .

isDestroyed() → boolean

如果此对象被销毁, 返回真实; 否则, 错误 .

If this object was destroyed, it should not be used; calling any function other than isDestroyed will result in a DeveloperError exception.
Returns:
如果此天体被销毁, 则属真; 否则, 属假 .

Type Definitions

Cesium.Label.ConstructorOptions

标签构建器的初始化选项
Properties:
Name Type Attributes Default Description
position Cartesian3 标签的笛卡尔位置.
id * <optional>
 A user-defined object to return when the label is picked with Scene#pick.
show boolean <optional>
 true Determines if this label will be shown.
text string <optional>
 指定标签文本的字符串.
font string <optional>
 '30px sans-serif' A string specifying the font used to draw this label. Fonts are specified using the same syntax as the CSS 'font' property.
style LabelStyle <optional>
 LabelStyle.FILL A LabelStyle specifying the style of the label.
scale number <optional>
 1.0 一个数字,指定与标签大小相乘的统一比例尺.
showBackground boolean <optional>
 false Determines if a background behind this label will be shown.
backgroundColor Color <optional>
 new Color(0.165, 0.165, 0.165, 0.8) A Color specifying the background color of the label.
backgroundPadding Cartesian2 <optional>
 new Cartesian2(7, 5) A Cartesian2 Specifying the horizontal and vertical background padding in pixels.
pixelOffset Cartesian2 <optional>
 Cartesian2.ZERO A Cartesian2 specifying the pixel offset in screen space from the origin of this label.
eyeOffset Cartesian3 <optional>
 Cartesian3.ZERO A Cartesian3 specifying the 3D Cartesian offset applied to this label in eye coordinates.
horizontalOrigin HorizontalOrigin <optional>
 HorizontalOrigin.LEFT A HorizontalOrigin specifying the horizontal origin of this label.
verticalOrigin VerticalOrigin <optional>
 VerticalOrigin.BASELINE A VerticalOrigin specifying the vertical origin of this label.
heightReference HeightReference <optional>
 HeightReference.NONE A HeightReference specifying the height reference of this label.
fillColor Color <optional>
 Color.WHITE A Color specifying the fill color of the label.
outlineColor Color <optional>
 Color.BLACK A Color specifying the outline color of the label.
outlineWidth number <optional>
 1.0 一个数字,指定标签的大纲宽度.
translucencyByDistance NearFarScalar <optional>
 A NearFarScalar specifying near and far translucency properties of the label based on the label's distance from the camera.
pixelOffsetScaleByDistance NearFarScalar <optional>
 A NearFarScalar specifying near and far pixel offset scaling properties of the label based on the label's distance from the camera.
scaleByDistance NearFarScalar <optional>
 A NearFarScalar specifying near and far scaling properties of the label based on the label's distance from the camera.
distanceDisplayCondition DistanceDisplayCondition <optional>
 A DistanceDisplayCondition specifying at what distance from the camera that this label will be displayed.
disableDepthTestDistance number <optional>
 距离照相机的距离,超出这个距离的深度测试被禁用——例如,防止对地形进行剪切.
