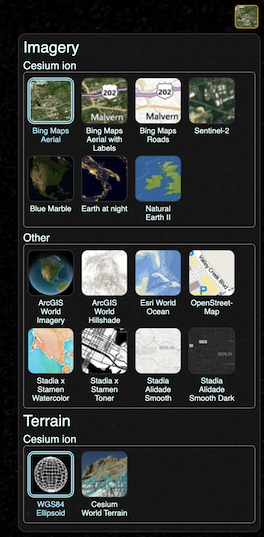

BaseLayerPicker with its drop-panel open.

BaseLayerPicker 是一个单一的按钮部件,显示一组可用的图像和 地形提供者。 当选择图像时, 创建并插入相应的图像层 作为图像收集的基层; 删除现有的基层。 当选择地形时, 它取代了当前地形提供者。 现有供应商名单上的每个项目都有一个名称, 具有代表性的图标和一个工具提示,用于显示盘旋时的更多信息。 名单最初是 空的,在使用前必须配置,如下示例所示.

默认情况下,BaseLayerPicker为演示目的使用默认的示例提供者列表. Notably some of these providers, such as Esri ArcGIS and Stadia Maps, have seperate terms of service and require authentication for production use.

Throws:

• DeveloperError : Element with id "container" does not exist in the document.

Example:

// In HTML head, include a link to the BaseLayerPicker.css stylesheet,
// and in the body, include: <div id="baseLayerPickerContainer"
//   style="position:absolute;top:24px;right:24px;width:38px;height:38px;"></div>

//Create the list of available providers we would like the user to select from.
//This example uses 3, OpenStreetMap, The Black Marble, and a single, non-streaming world image.
const imageryViewModels = [];
imageryViewModels.push(new Cesium.ProviderViewModel({
     name: "Open\u00adStreet\u00adMap",
     iconUrl: Cesium.buildModuleUrl("Widgets/Images/ImageryProviders/openStreetMap.png"),
     tooltip: "OpenStreetMap (OSM) is a collaborative project to create a free editable \
map of the world.\nhttp://www.openstreetmap.org",
     creationFunction: function() {
         return new Cesium.OpenStreetMapImageryProvider({
             url: "https://tile.openstreetmap.org/"
         });
     }
 }));

 imageryViewModels.push(new Cesium.ProviderViewModel({
     name: "Earth at Night",
     iconUrl: Cesium.buildModuleUrl("Widgets/Images/ImageryProviders/blackMarble.png"),
     tooltip: "The lights of cities and villages trace the outlines of civilization \
in this global view of the Earth at night as seen by NASA/NOAA's Suomi NPP satellite.",
     creationFunction: function() {
         return Cesium.IonImageryProvider.fromAssetId(3812);
     }
 }));

 imageryViewModels.push(new Cesium.ProviderViewModel({
     name: "Natural Earth\u00a0II",
     iconUrl: Cesium.buildModuleUrl("Widgets/Images/ImageryProviders/naturalEarthII.png"),
     tooltip: "Natural Earth II, darkened for contrast.\nhttp://www.naturalearthdata.com/",
     creationFunction: function() {
         return Cesium.TileMapServiceImageryProvider.fromUrl(
             Cesium.buildModuleUrl("Assets/Textures/NaturalEarthII")
         );
     }
 }));

//Create a CesiumWidget without imagery, if you haven't already done so.
const cesiumWidget = new Cesium.CesiumWidget("cesiumContainer", { baseLayer: false });

//Finally, create the baseLayerPicker widget using our view models.
const layers = cesiumWidget.imageryLayers;
const baseLayerPicker = new Cesium.BaseLayerPicker("baseLayerPickerContainer", {
    globe: cesiumWidget.scene.globe,
    imageryProviderViewModels: imageryViewModels
});

See:

• TerrainProvider
• ImageryProvider
• ImageryLayerCollection
