CloudCollection - CesiumJS API 文档

new Cesium.CloudCollection(options)

3D场景中可变的云集.

示例积分云

Clouds are added and removed from the collection using CloudCollection#add 和 CloudCollection#remove .

Name Type Description

options

object

optional 下列属性的对象 :

Name	Type	Default	Description
`show`	boolean	`true`	optional Whether to display the clouds.
`noiseDetail`	number	`16.0`	optional Desired amount of detail in the noise texture.
`noiseOffset`	number	`Cartesian3.ZERO`	optional Desired translation of data in noise texture.
`debugBillboards`	boolean	`false`	optional For debugging only. Determines if the billboards are rendered with an opaque color.
`debugEllipsoids`	boolean	`false`	optional For debugging only. Determines if the clouds will be rendered as opaque ellipsoids.

Example:

// Create a cloud collection with two cumulus clouds
const clouds = scene.primitives.add(new Cesium.CloudCollection());
clouds.add({
  position : new Cesium.Cartesian3(1.0, 2.0, 3.0),
  maximumSize: new Cesium.Cartesian3(20.0, 12.0, 8.0)
});
clouds.add({
  position : new Cesium.Cartesian3(4.0, 5.0, 6.0),
  maximumSize: new Cesium.Cartesian3(15.0, 9.0, 9.0),
  slice: 0.5
});

Demo:

See:

Members

debugBillboards : boolean

此属性仅用于调试;不用于生产,也不优化.

为调试起见,将广告牌用一个不透明的颜色渲染.

Default Value: false

debugEllipsoids : boolean

此属性仅用于调试;不用于生产,也不优化.

画云为不透明,单色椭圆形,为调试之用. 如果 NT 0 debugBillboards NT 1 也是真实的,那么椭圆形将画在公告牌的上方.

Default Value: false

length : number

返回此收藏中的云数 .

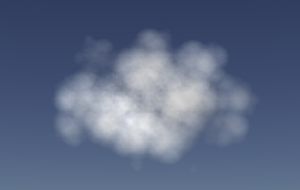

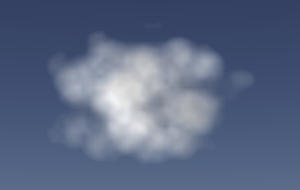

noiseDetail : number

控制预计算噪声纹理中捕获的细节量用来制造积分云. 为使纹理可瓦, 这一定是两个力量为了取得最佳结果, 将它设定为两个力量在 NT+0 8.0 NT+1 和 NT+2 32.0 NT+3 (含)之间.

clouds.noiseDetail = 8.0; clouds.noiseDetail = 32.0;

Default Value: 16.0

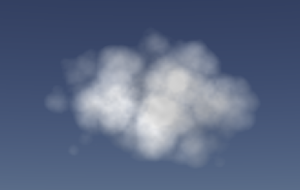

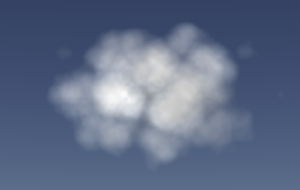

noiseOffset : Cartesian3

对噪声纹理坐标应用翻译生成不同的数据. 如果默认噪声不产生好看的云,则可以修改这个.

-NT##0 默认 NT##1 NT 2 clouds.noiseOffset = new Cesium.Cartesian3(10, 20, 10);

Default Value: Cartesian3.ZERO

show : boolean

确定是否在此收藏中显示公告牌 .

Default Value: true

Methods

add(options) → CumulusCloud

创建并添加带有指定初始属性的云. 添加的云被还原,以便日后可以修改或从收藏中移除.

Performance:

Calling add is expected constant time. However, the collection's vertex buffer is rewritten - an O(n) operation that also incurs CPU to GPU overhead. For 最佳表现,在调用 update 前,请加入尽可能多的云.

Name	Type	Description
`options`	object	optional A template describing the cloud's properties as shown in Example 1.

Returns:

集中所增云.

Throws:

DeveloperError : This object was destroyed, i.e., destroy() was called.

Examples:

// Example 1:  Add a cumulus cloud, specifying all the default values.
const c = clouds.add({
  show : true,
  position : Cesium.Cartesian3.ZERO,
  scale : new Cesium.Cartesian2(20.0, 12.0),
  maximumSize: new Cesium.Cartesian3(20.0, 12.0, 12.0),
  slice: -1.0,
  cloudType : CloudType.CUMULUS
});

// Example 2:  Specify only the cloud's cartographic position.
const c = clouds.add({
  position : Cesium.Cartesian3.fromDegrees(longitude, latitude, height)
});

See:

contains(cloud) → boolean

检查此收藏是否包含给定的云 .

Name	Type	Description
`cloud`	CumulusCloud	optional 云何应验.

Returns:

如果本集包含云,则真实,否则是虚假的.

See:

CloudCollection#get

destroy()

Destroys the WebGL resources held by this object. Destroying an object allows for deterministic 释放 WebGL 资源,而不是依赖垃圾收集器来摧毁此对象.

Once an object is destroyed, it should not be used; calling any function other than isDestroyed will result in a DeveloperError exception. Therefore, assign the return value (undefined) to the object as done in the example.

Throws:

DeveloperError : This object was destroyed, i.e., destroy() was called.

Example:

clouds = clouds && clouds.destroy();

See:

CloudCollection#isDestroyed

get(index) → CumulusCloud

在指定的索引中返回收藏中的云。指数为零并随云而增. 清除云会移动所有云在左边,改变他们的指数。此函数通常用于 ○CloudCollection#length ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□.

Performance:

Expected constant time. If clouds were removed from the collection and CloudCollection#update was not called, an implicit O(n) 操作完成.

Name	Type	Description
`index`	number	云何无量无边无边无边无边无边无边无边.

Returns:

指定索引上的云.

Throws:

DeveloperError : This object was destroyed, i.e., destroy() was called.

Example:

// Toggle the show property of every cloud in the collection
const len = clouds.length;
for (let i = 0; i < len; ++i) {
  const c = clouds.get(i);
  c.show = !c.show;
}

See:

CloudCollection#length

isDestroyed() → boolean

如果此对象被销毁, 返回真实; 否则, 错误 .

If this object was destroyed, it should not be used; calling any function other than isDestroyed will result in a DeveloperError exception.

Returns:

true if this object was destroyed; otherwise, false.

See:

CloudCollection#destroy

remove(cloud) → boolean

删除收藏中的云.

Name	Type	Description
`cloud`	CumulusCloud	云何为除.

Returns:

true if the cloud was removed; false if the cloud was not found in the collection.

Throws:

DeveloperError : This object was destroyed, i.e., destroy() was called.

Example:

const c = clouds.add(...);
clouds.remove(c);  // Returns true

See:

removeAll()

从集中除去一切云.

Performance:

O(n). It is more efficient to remove all the clouds 从收藏开始,然后添加新收藏,而不是完全创建新收藏.

Throws:

DeveloperError : This object was destroyed, i.e., destroy() was called.

Example:

clouds.add(...);
clouds.add(...);
clouds.removeAll();
